Key Takeaways:
- The Speed Square Handles Most Layout Tasks With One Tool: Marking cuts, checking square, and setting angles without switching between multiple tools.
- Understanding Pitch Markings Speeds Up Roof Work: Common rafter angles are pre-marked for fast layout without calculation.
- Mistakes Usually Come From Poor Setup, Not The Tool: Pressing the lip flat, keeping the lumber stable, and holding the marking line tight eliminate most errors.
Most carpenters have picked up a speed square, eyeballed an angle, and hoped for the best, only to watch a perfectly good cut go wrong the moment the saw hits the wood. One degree off is all it takes to throw an entire frame out of alignment. A speed square is one of the simplest tools on your belt, but only when you actually know how to use it.
At Martinez Tools Co., we build speed squares for professionals who can't afford to rely on guesswork on the job. Our tools are engineered for accuracy from the first layout line to the final cut.
In this piece, we'll walk through exactly how to use a speed square, covering everything from marking clean crosscuts and scribing angles to nailing roof pitch layouts and stair stringers. Whether you're framing walls or finishing cutting trim, this is the technique breakdown your work depends on.
Back To Basics: Reading A Speed Square Correctly
The speed square has three edges: the lip (the thickest edge that hooks onto lumber), the pivot edge (a 90° reference), and the hypotenuse (the angled edge with degree markings). Choosing the right speed square tool from the start means fewer calibration issues and more reliable results across every layout task. The lip sits against the lumber. The pivot edge marks square cuts. The degree scale runs along the hypotenuse.
The Lip Edge and Why It Matters
The lip hooks onto the edge of your lumber and keeps the square aligned while you scribe. Press it flat against the board. If it lifts or shifts, your mark won't be square. Most mistakes start here.
Reading Degree Markings
Degree numbers run from 0° to 90° along the hypotenuse. Align your pencil with the number you need, then scribe along the pivot edge or hypotenuse, depending on the cut. The 0° mark sits at the lip, the 90° mark sits at the opposite corner.
Common Vs. Hip/Val Markings
Two scales run along the hypotenuse: "Common" and "Hip/Val." Common rafter markings indicate standard roof pitch angles (rise over run). Hip/Val markings apply to hip and valley rafters, which sit at different angles. Use the scale that matches your cut.
Understanding Common Speed Square Angles And Pitch Markings
Roof pitch is expressed as rise over run, how many inches a roof rises for every 12 inches of horizontal distance. A 6/12 pitch rises 6 inches per foot. Speed squares show these ratios as pre-marked angles, so you don't have to calculate.
What the Numbers Mean on Common Rafter Scales
Numbers like 4, 6, 8, and 12 on the common scale represent pitch. Align the common-scale pitch number with the rafter edge and mark the appropriate edge for the plumb cut; seat cuts are laid out using the same pitch reference, but with the square oriented to create the level cut of the bird's mouth.
Quick Reference for Standard Angles
- 90°: Square cuts (crosscuts, stud layout)
- 45°: Standard miter cuts (trim, corners)
- 22.5°: Half miters for octagonal work
- Many residential steep-slope roofs commonly fall in the 4/12 to 12/12 range, though this varies by building type, region, and roofing material.
Core Speed Square Uses For Framing, Carpentry, And Trim
Speed squares mark cuts, guide circular saws, and check squares on assembled frames. The lip keeps it positioned. The pivot edge keeps it straight.
Marking Square Cuts Across Studs and Joists

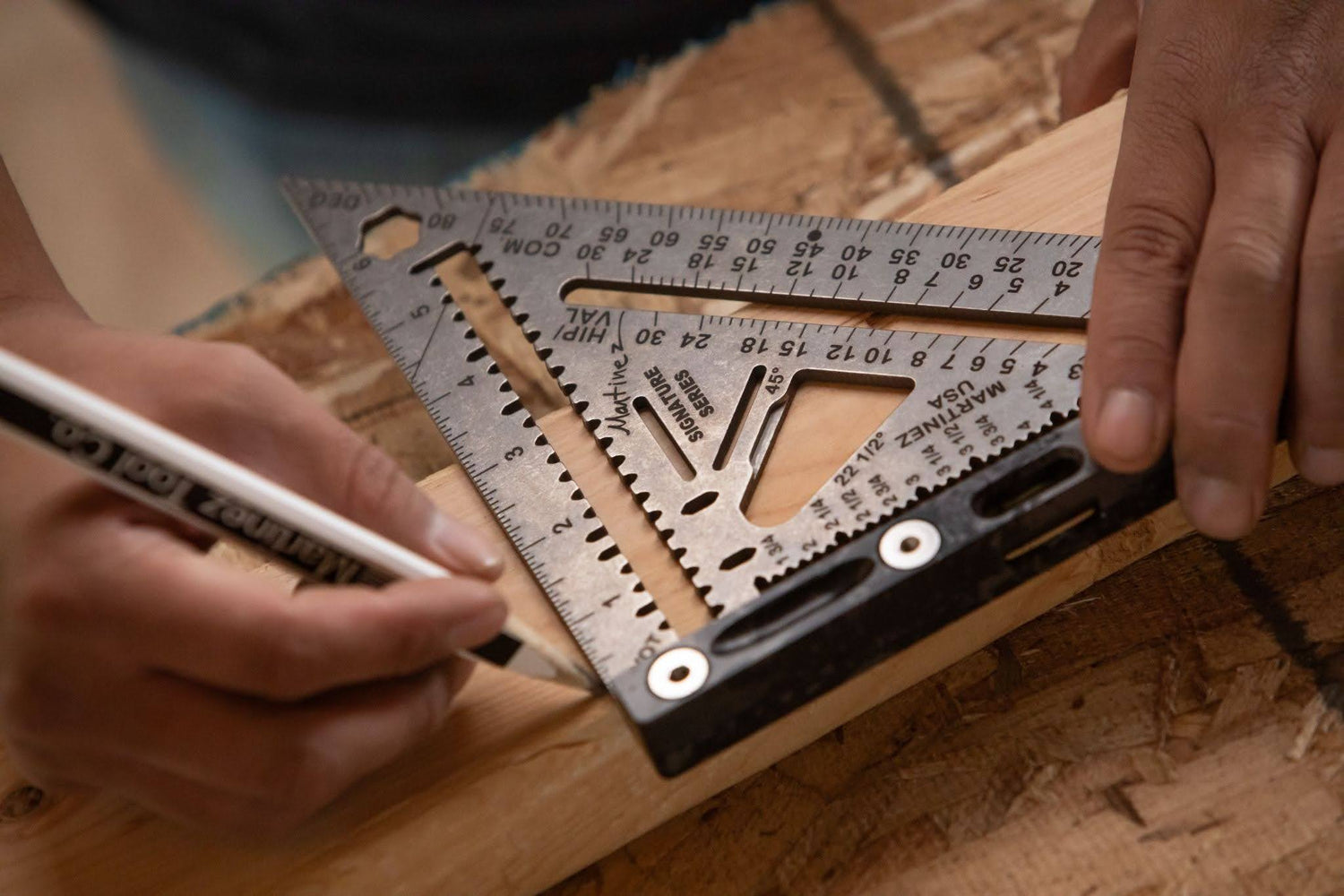

Hook the lip on the edge of the lumber. Press it flat. Hold your pencil against the pivot edge and scribe across the face. That's a square cut line.
Guiding Circular Saw Cuts
Set the speed square on your cut line with the lip hooked and the pivot edge aligned. A speed square can guide a circular saw for short cuts, but the board must be safely supported and secured. Run your saw base plate along the pivot edge. Keeps the blade straight without a fence or clamps.
Checking Corner and Frame Square
Set the speed square into the inside or outside corner of your assembled frame. A visible gap can indicate that a corner is not square, though precise verification may require measuring diagonals or using a larger framing square, depending on the assembly size. Adjust before fastening.
How To Use A Speed Square For Framing Layout And Rafter Work
Rafter layout requires repetitive angle cuts at a consistent pitch. A purpose-built rafter square tool gives you dedicated pitch markings and a longer reference edge for cleaner, faster rafter layout on production framing. Speed squares handle this faster than protractors or bevel gauges because the pitch is already marked.
Setting Plumb and Seat Cuts on Rafters
Align your desired pitch number (e.g., 6 for a 6/12 roof) with the top edge of the rafter. Scribe along the pivot edge for the plumb cut. Rotate the square 90° and scribe again for the seat cut. Both cuts reference the same pitch.
Using Stair Gauges for Repeat Angles
Clamp the Martinez stair gauges onto the square at your desired pitch marks. Stair gauges for framing squares are the most efficient way to lock in a consistent angle across dozens of identical cuts without repositioning by hand each time. The gauges lock the square into position for fast, repeating layout without realigning every cut. Works for rafters, stringers, and any repetitive angle work.
Common Speed Square Mistakes That Cost You Time And Accuracy
The square is only as accurate as its use. These are the mistakes that appear most often on job sites:
Not seating the fence fully against the edge.
If the fence isn't flush, the reference angle isn't true. Every mark made from a partially seated square carries that error into the cut.
Reading the wrong scale.
Most speed squares have multiple angle scales. Reading the wrong one gives you a cut that's off, and it happens fast when you're moving quickly through repeat cuts.
Using a damaged square without checking it first.
A drop or impact can knock a square out of calibration without any visible damage. If your cuts have been running consistently off, check the square before blaming the saw.
Marking too lightly on rough lumber.
A faint pencil line on rough stock disappears fast. Use a keel on structural lumber and press the line deep enough to follow through sawdust and debris.
Using the wrong square for the application.
A compact speed square on a long layout run introduces cumulative error. For longer layout runs and structural assemblies, a full carpenter square gives you the reference length and accuracy that a compact speed square isn't designed to provide. Match the tool to the task: the rapid square for repeat cuts, the framing square for long layout work.
Final Thoughts
A speed square marks cuts, sets angles, and checks square faster than most multi-tool setups. The tool works because the geometry is simple and the design concept has remained consistent since its development in 1925. What matters is build quality, whether the lip sits flat, the edges stay straight, and the markings hold up. For a full breakdown of what belongs in a professional setup beyond layout tools, our Carpentry Tools List: 25 Must-Have Tools for Every Skill Level covers the essentials from striking and fastening to finishing. We machine ours to sit flush and stay square through daily job site use. No flex. No worn edges. Built for framers who rely on their layout tools to stay accurate.
Frequently Asked Questions About Using Speed Squares
What is a speed square and why do framers need one?
A speed square is a triangular layout tool that functions as a try square, miter square, saw guide, line scriber, and protractor, making it faster than carrying separate tools.
How do you use a speed square to cut angles?
Hook the lip on the lumber edge, align your desired degree marking with the board's edge, and scribe along the pivot edge or hypotenuse, depending on the angle direction.
What is the 3/4/5 rule for squaring?
Measure 3 feet along one edge, 4 feet along the perpendicular edge, and check that the diagonal between those points is exactly 5 feet—if so, the corner is square. This applies the Pythagorean theorem (3² + 4² = 5²).
How to draw a 30-degree angle using a speed square?
Hook the lip onto the lumber, locate the 30° mark on the degree scale, align your pencil with that mark, and scribe along the pivot edge.
How to find a 45° angle on a speed square?
The 45° mark sits at the midpoint of the degree scale on the hypotenuse; align it with the lumber edge and scribe along the pivot edge for a perfect miter cut.
What's the fastest way to mark a square cut on framing lumber?
Hook the speed square lip onto the edge of the lumber, press it flat, and scribe a straight line across the face along the pivot edge. It takes seconds and stays square.
