Rafter layout runs on consistency and precision. Here's what the square has to handle:
A True Reference Angle That Doesn't Drift
Every rafter cut on a run is marked from the same reference. A square that drifts even slightly out of true compounds that error across every member. The reference angle has to hold from the first rafter to the last.
Legible Angle Markings
Plumb cuts, seat cuts, tail cuts, and rafter layout use multiple angles from the same square. Markings need to be clear, engraved, and readable in outdoor conditions where printed markings wear off fast.
Enough Size for the Application
A compact speed square handles repeat angle marking on individual rafters. A framing square handles full rafter layout, rise, run, and length calculations across the whole roof. Match the square to what the layout actually requires.
Durability on a Roof
Rafter layout happens at height, in variable weather, on surfaces that aren't flat. The square gets dropped, slid across sheathing, and pulled in and out of a pouch all day. It needs to hold its calibration through that without bending or losing its edge.
Compatibility With a Stair Gauge
The Martinez stair gauge clamps to a framing or rapid square and locks in a consistent angle across a full rafter run, no resetting between members, no drift between cuts. For repeat-angle rafter work, it's the spec that makes the square faster and more consistent.
Marking Angles Fast Without Losing Accuracy

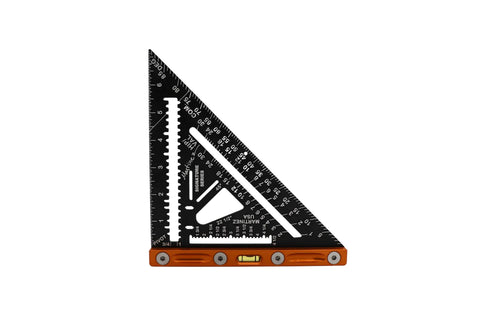

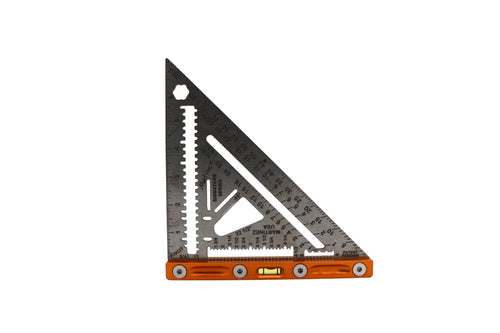

Speed square rafter cuts rely on a rigid fence and a clear pivot line to transfer pitch angles without setup time between boards. The pivot point on most speed squares sits at the corner where the fence meets the hypotenuse. That's your reference for all common rafter angles. Line it up with your plumb cut, rotate to your pitch, and scribe. For a closer look at how the Martinez Rapid Square performs in this role, the Tool Review: Martinez Tool Co. Rapid Square provides detailed real-world performance data.
Why Fence Length Affects Layout Speed
A 7-inch speed square is commonly used for rafter layout on 2x framing lumber, including 2x6 and 2x8 stock, though a 12-inch rafter square provides more contact and reach on wider boards. Longer fences also let you extend your pencil line without repositioning the tool mid-cut.
Marking Hip and Valley Cuts
Many professional rafter squares include secondary scales for hip, valley, and jack rafter layout. You're still pivoting from the same corner, just reading a different set of graduations. If your square doesn't have those scales, you may need to calculate or transfer those angles separately.
Best Layout Square For Rafters: What Separates Precision From Close Enough
“Close enough” on the rafter layout shows up in the finished roof. Here's what precision actually requires and where Martinez delivers it:
Machined Tolerances, Not Stamped
A stamped square is shaped to approximate dimensions. A machined square is cut to exact ones. Every Martinez rapid square and framing square is precision-machined; the reference angle is accurate from the first rafter and stays that way across the full run. See how our Rapid and Micro Squares: Precision Instruments video covers what that level of machining looks like in practice.
Engraved Markings That Stay Readable
Printed angle scales wear off. Martinez squares feature engraved markings that hold up to daily handling, moisture exposure, and repeated use on rough lumber, and are readable on rafter one and rafter twenty.
A Fence That Seats Flush Every Time
The fence has to sit flush on every mark. A fence that's slightly off produces a reference angle that isn't true, regardless of how accurate the square itself is. Martinez squares are machined so the fence seats consistently, every time.
Consistent Performance Across the Full Run
Consistent material, consistent machining, construction that doesn't flex or warp. That's the Martinez standard, built to hold its performance through a full rafter run without drifting between cuts.
How To Mark Consistent Cuts Across A Full Run
Consistent rafter cuts depend on repeatable tool placement more than perfect measurement on every board. Set your angle once using the Martinez stair gauge, clamp it to your layout square, and run the entire roof without resetting. The stair gauge locks your pitch in place, so you don't have to reposition or recheck angles between cuts.
Using Stair Gauges for Repeat Angles
Stair gauges clamp onto a square and act as stops, improving repeatability when marking the same pitch or layout line across multiple boards. Once you set the pitch, every rafter gets marked consistently. This eliminates drift that happens when you eyeball the pivot point on each new board. Your first and last cuts come from the same setup.
When to Check Square Alignment
Check your square alignment if you drop it off staging or if it takes a hard hit in the truck bed. A bent square won't register true, even if the markings are still readable. Lay it flat on a known straight surface and check for gaps along the fence edge. If it doesn't sit flush, it's no longer reliable for layout work.
Why Pros Choose Martinez Tool Co. For Their Rafter Layout Square
We machine our layout tools from solid stock because casting introduces inconsistencies that show up under real working conditions. Our squares hold their edge geometry through drops, pressure, and daily handling, built to stay true from the first cut to the last. That standard runs through everything we make; learn more About Our Workmanship.
Built for Job Site Conditions
Our layout squares maintain their straightness under marking pressure and resist wear through extended use. The fence edges stay flat, the pivot corners stay rigid, and the angle graduations stay readable. These aren't tools you replace every year. They're built to last through the kind of use that destroys cheaper alternatives.
Designed Around Framing Work
We focus on the details that matter when you're running rafters all day, fence length, edge straightness, and material rigidity. Everything else is secondary. You don't need extra features or gimmicks. You need a square that works the same way on the first cut and the fiftieth. If you're building out your full kit, our Carpentry Tools List: 25 Must-Have Tools for Every Level is a solid reference for what else belongs alongside your layout square.
Shop The Martinez Square Built For Rafter Layout Work
Rapid squares, framing squares, and the Martinez stair gauge, all precision-machined, all built to hold calibration through a full rafter run. Browse the full Martinez square lineup and order direct, or use the square configurator to choose your blade, color, and finish. Either way, you're getting a square built to the same American-made standard across every configuration.
Order direct from Martinez Tools. Free shipping within the United States, processed and out the door within 3–5 business days. For a deeper dive into one of our most precise offerings, the All About the Martinez Micro Square video walks through the details that make it a standout layout tool.
